Holden Commodore ZB 2018-2020 Fuse Layout

In this article we take a look at the fifth generation Holden Commodore (ZB), produced from 2018 to 2020. Here you will find Holden Commodore ZB 2018, 2019 and 2020 fuse box diagrams, information on the location of the fuse boxes in the vehicle and the assignment of each fuse (fuse layout). Passenger Compartment Fuse Box Fuse Box Location The fuse box is located behind a cover in the glovebox. Open the glovebox and remove the cover. Fuse Box Diagram Assignment of the fuses in the dashboard № Circuit 1 Left power window 2 Right power window 3 Body control

December 13, 2024

holden commodore vf 2013 2017 fuse layout

Holden Commodore VF 2013-2017 Fuse Layout

This article covers the fourth generation Holden Commodore (VF) produced from 2013 to 2017. Here you will find the fuse box diagrams for the Holden Commodore VF 2013, 2014, 2015, 2016 and 2017, get information on the location of the fuse boxes inside the car and learn about the assignment of each fuse (fuse layout) and relay. Passenger Compartment Fuse Box Fuse Box Location Insert a screwdriver in the slot indicated and lever off the fuse panel cover. Fuse Box Diagram Assignment of the fuses in the dashboard № Amps Function F1 15A BODY CONTROL MODULE 1 F2 10A DIAGNOSTIC

December 13, 2024

holden commodore ve 2006 2013 fuse layout

Holden Commodore VE 2006-2013 Fuse Layout

This article covers the fourth generation Holden Commodore (VE) produced from 2006 to 2013. Here you will find Holden Commodore VE 2006, 2007, 2008, 2009, 2010, 2011 and 2012 fuse box diagrams, information on the location of the fuse boxes in the vehicle and the assignment of each fuse (fuse layout) and relay. Passenger Compartment Fuse Box Fuse Box Location Pull on the slot in the fuse panel cover and slide rearwards to access the fuse panel. Fuse Box Diagram Assignment of the fuses under the dashboard № Amps Function F1 10A SIR (SRS) / AIRBAGS F2 10A/30A BOOT RELEASE

December 13, 2024

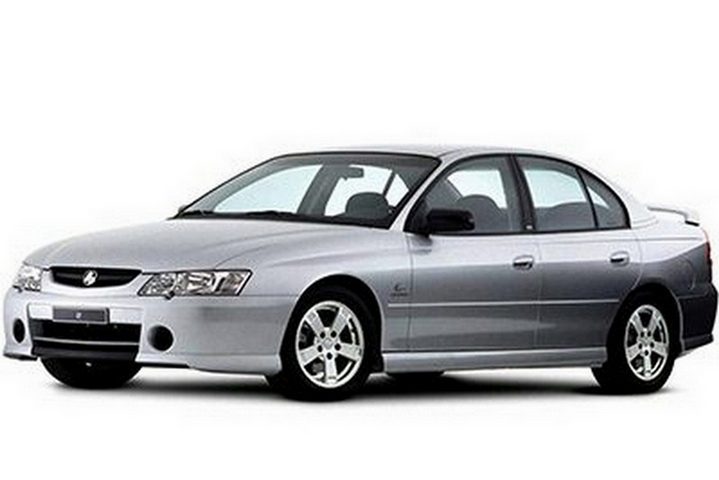

holden commodore vy & holden commodore vz 2002 2007 fuse layout

Holden Commodore VY & Holden Commodore VZ 2002-2007 Fuse Layout

This article covers the third generation Holden Commodore (VY, VZ) produced from 2002 to 2007. Here you will find fuse box diagrams for the Holden Commodore VY (2002, 2003, 2004) and Commodore VZ (2004, 2005, 2006, 2007), get information on the location of the fuse boxes in the car and learn about the assignment of each fuse (fuse layout) and relay. Passenger Compartment Fuse Box Fuse Box Location The main fuse panel is in the instrument panel, below the steering column. Pull the hinged fuse panel down to reveal the fuses. Fuse Box Diagram (VY-II) Fuse Box Diagram (VZ) Engine
