Essential Automotive Fuse Box Diagrams for Your Vehicle

Welcome to your ultimate hub for automotive fuse box diagrams! Whether you’re troubleshooting an electrical issue or just want to be prepared, we’ve got all the resources you need to keep your vehicle’s fuses in check.

What Are Automotive Electrical Fuses?

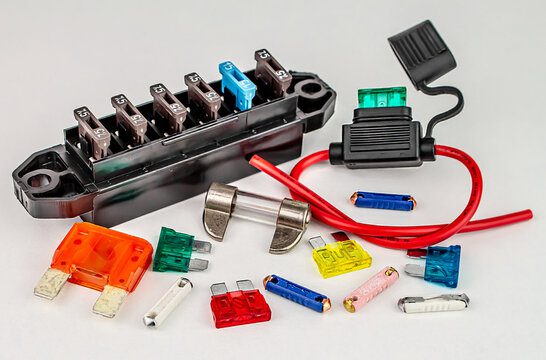

Fuses are the unsung heroes of your car’s electrical system. These small but mighty components shield your vehicle’s circuits from dangerous overcurrent—when too much electricity flows through and risks damaging your equipment. From your headlights and radio to power windows and charging ports, fuses are the sole protectors of these everyday essentials. When an overcurrent occurs, the fuse sacrifices itself by “blowing,” cutting off power to prevent costly damage to your car’s devices. If something electrical in your vehicle stops working, a blown fuse might just be the culprit—and replacing it could be the quick fix you need.

How to Tell If a Fuse Is Blown

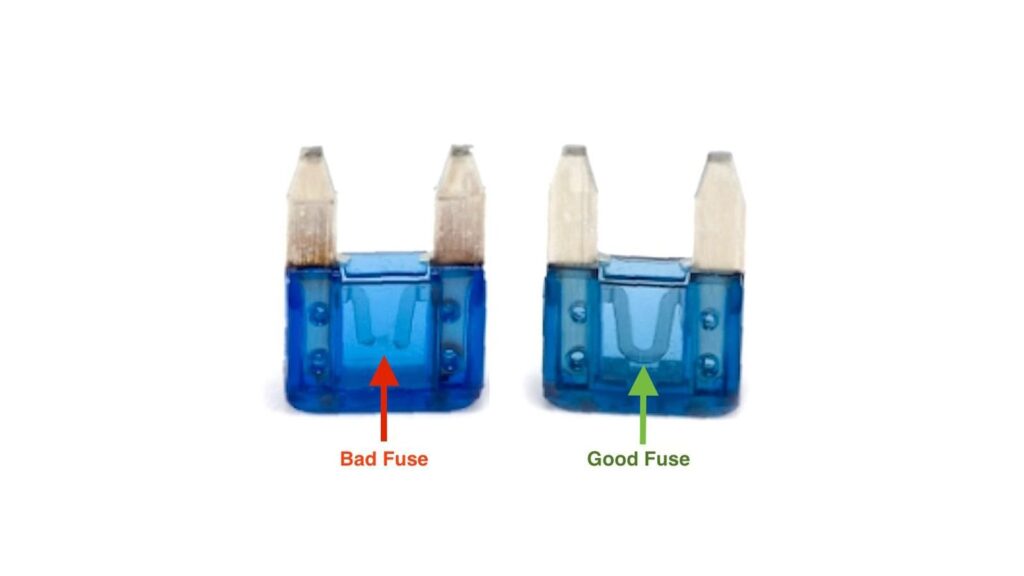

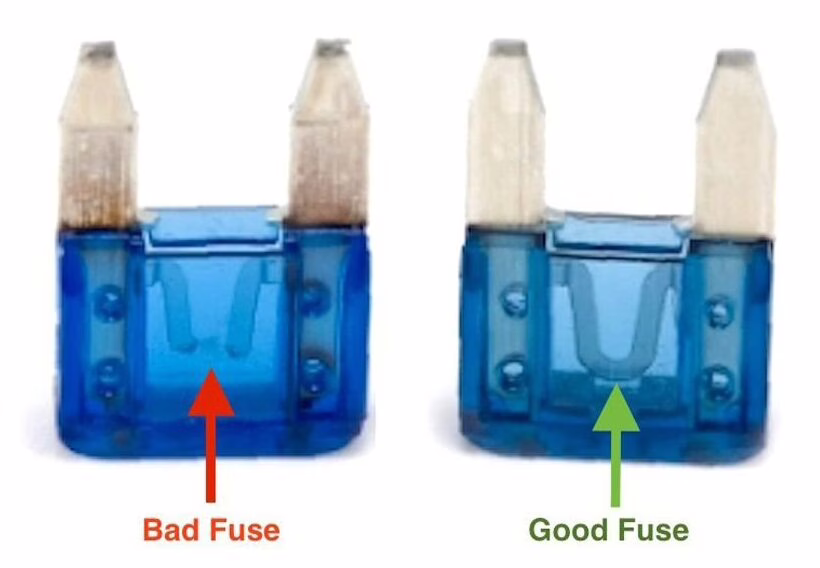

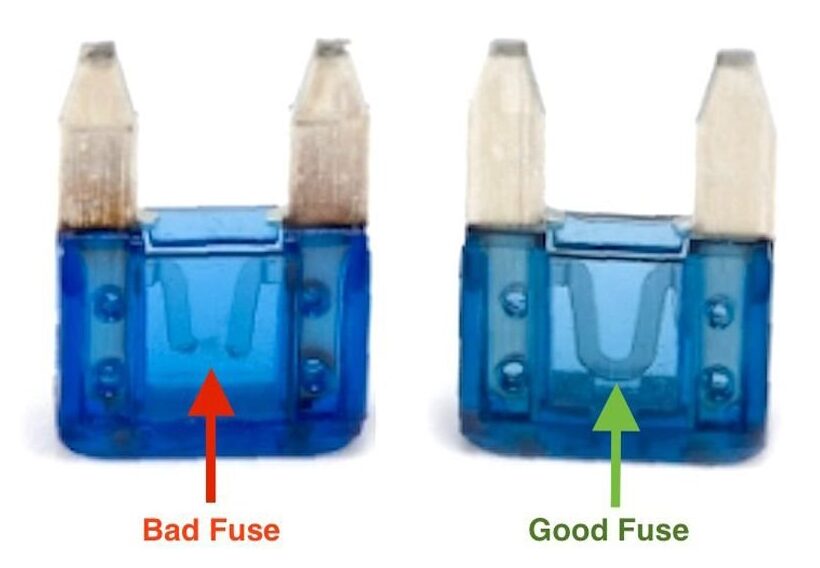

Spotting a blown fuse doesn’t have to be a mystery. Most fuses have a thin metal strip inside, called the fusible element. If this strip is broken, melted, or otherwise damaged, the fuse has done its job and needs replacing. That said, it’s not always obvious—sometimes the strip looks fine even when the fuse is no longer functional. When in doubt, test it with a multimeter or check your owner’s manual to confirm. Swapping out a bad fuse is a simple task that can get your car back to normal in no time.

How We Make Fuse Troubleshooting Easy

Our website takes the guesswork out of dealing with fuses. We’ve compiled detailed fuse box diagrams for countless vehicles, so you can pinpoint the exact fuse tied to any electrical component in your car. Just pick your car’s make and model from our extensive collection, and you’ll get a clear layout of the fuse box along with its location in your vehicle. Whether you’re fixing a problem or just curious about your car’s setup, our straightforward guides are here to help.

Don’t let a dead fuse dim your lights or silence your stereo. Dive into our fuse box diagrams today and keep your car powered up and ready to roll!
